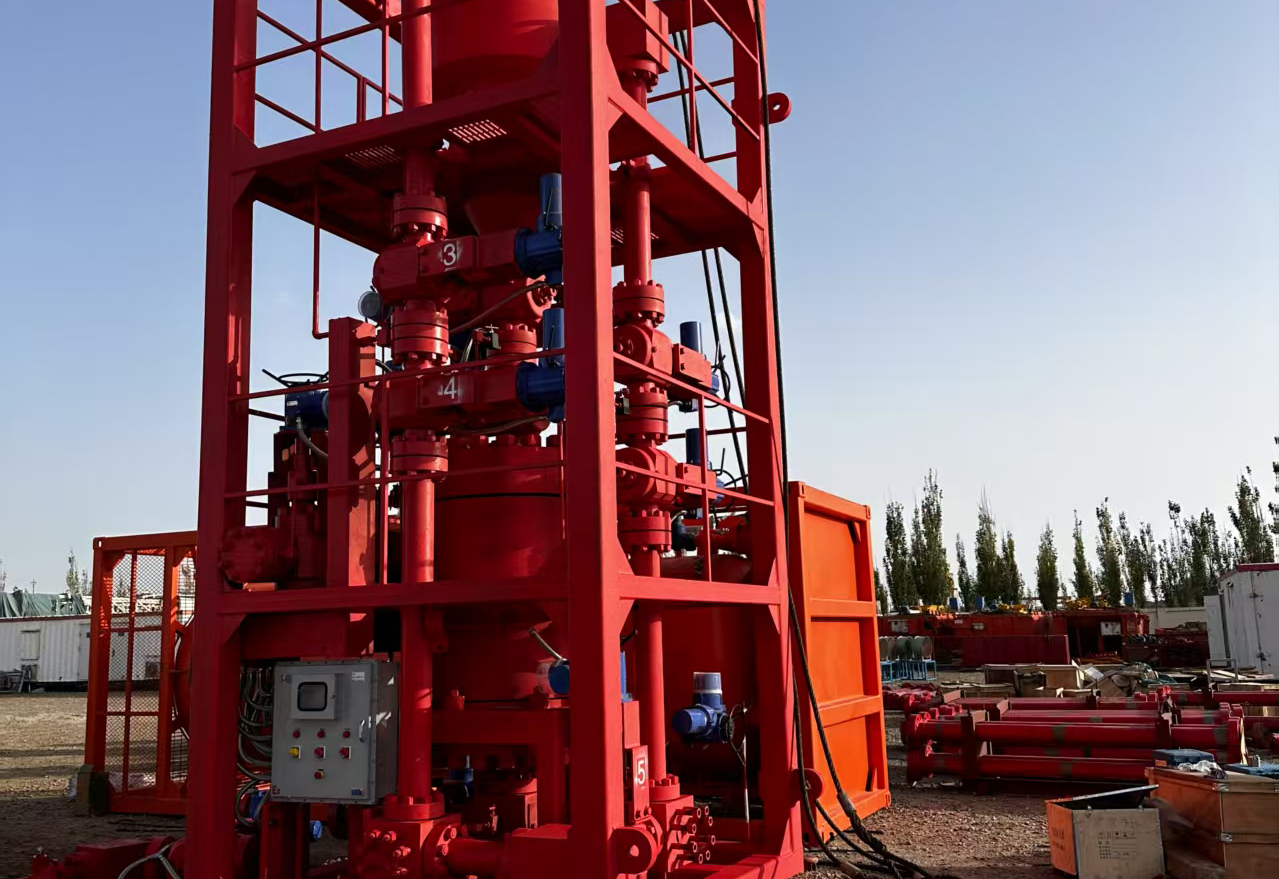

High-pressure wellhead desander

The wellhead high-pressure cyclone desander is mainly used for the test and sand removal of well washing and sand removal and sand formation after fracturing: the centrifugal force is generated by swirl, and the solid components sink to the bottom by centrifugal force and gravity, and the cleaner liquid and gas enter the central pipe, and the separated solid components can be discharged online, effectively reducing the erosion of downstream equipment and protecting downstream equipment

information

  • Project
    High-pressure wellhead desander
  • Client
    Desander
  • Budget
    $8,697.75
  • Date
    04 Feb, 2022
  • Location
    Ozark (AL), 36360
  • Social

PROJECT DESCRIPTION & RESULTS

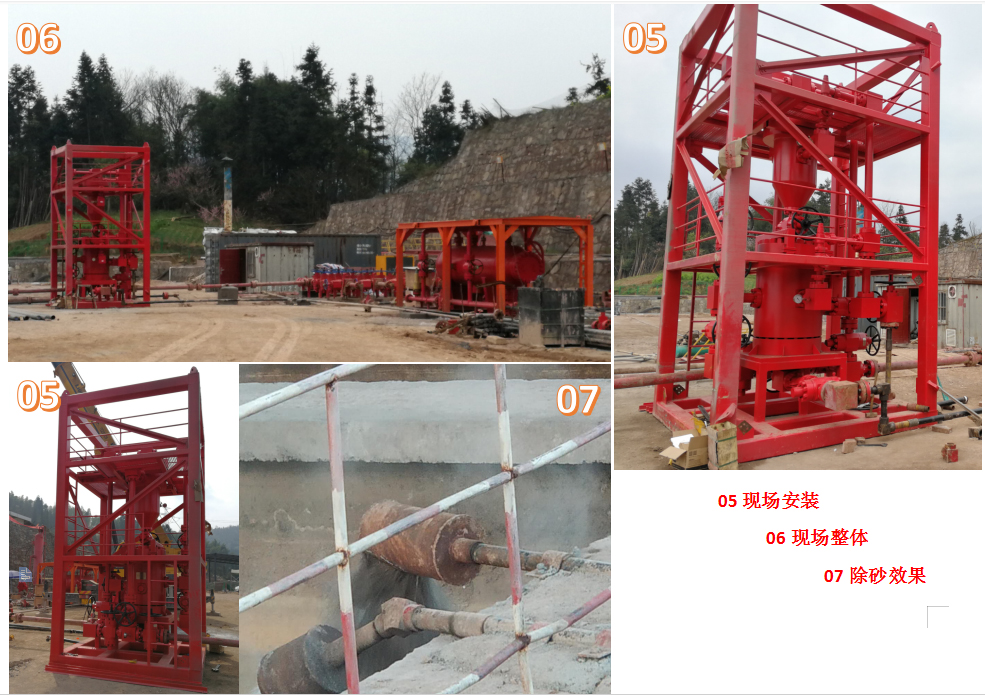

The gas enters through an angled pipe, and based on the working principle of the sand separator where solid particles rotate rapidly, solids are removed from high-speed wastewater before further processing of the fluid. To prevent damage, scaling, and blockages to downstream equipment during operation, the entire well flow is sent into the sand separator vessel. Inside the sand separator vessel, separation occurs according to centrifugal force, buoyant centripetal force, and fluid resistance in the cyclone separator. The separated solid sand particles and a small amount of liquid are discharged due to gravity into a reservoir that allows for separation, depressurization, and flushing.
